ModelSN Description
- VOE8278985 8278985Basic Machine
Avaliable parts

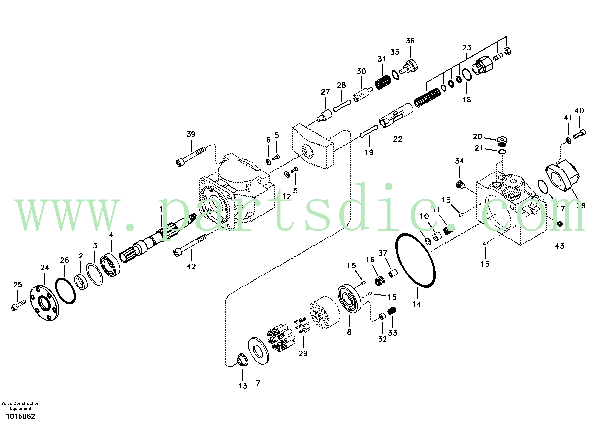

Mark NO.Part Number DescriptionQ1Q2Q3Q4Q5PS
- 1VOE14520750Pump1
- 2VOE14528774Shaft1
- 3VOE14525101Seal1
- 4VOE14528775RingREQ
- 5VOE14528779Roller bearing1
- 6VOE14525105Screw2
- 7VOE14528780Plate1
- 8VOE14528781Plate1
- 9VOE14528782Plate1
- 10VOE14528783Ring1
- 11VOE14528784Bushing1
- 12VOE14528785Spring1
- 13VOE14528786Plate1
- 14VOE14528787Retainer1
- 15SA8230-00240O-ring1
- 16SA8230-31150Pin0004
- 17VOE14528788Needle bearing1
- 18VOE990587O-ring1
- 19SA9511-12029O-ring1
- 20VOE14528789Rod1
- 21SA8230-01160Cap0002
- 22SA9511-12011O-ring0002
- 23VOE14528790Piston1
- 24VOE14530870Relief valve1
- 25VOE14528794Retainer1
- 26VOE14528795Screw6
- 27VOE14528796O-ring1
- 28VOE14528797Guide1
- 29VOE14528798Rod1
- 30VOE14525142Spring6
- 31VOE14528801Piston1
- 32VOE14525147Spring1
- 33VOE14528802Bushing0002
- 34VOE14528803Spring0002
- 35VOE14525118Plug0002
- 36SA8230-28240O-ring1
- 37VOE14528804Cap1
- 38VOE14528805Coupling1
- 39VOE14528806Gear pump1
- 40VOE14513175Bolt3
- 41VOE14528807Screw2
- 42VOE14525159Washer2
- 43VOE14528808Screw1
- 44VOE14533175Plug1
- 45VOE14528809Sealing1
